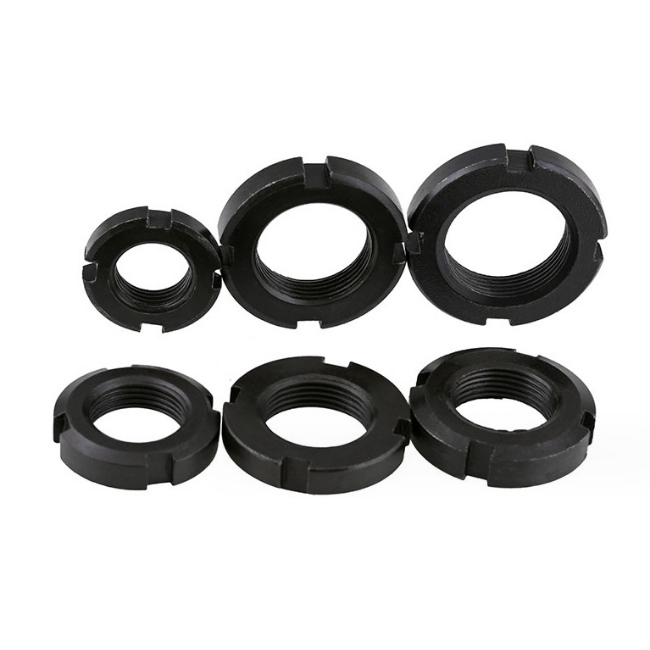

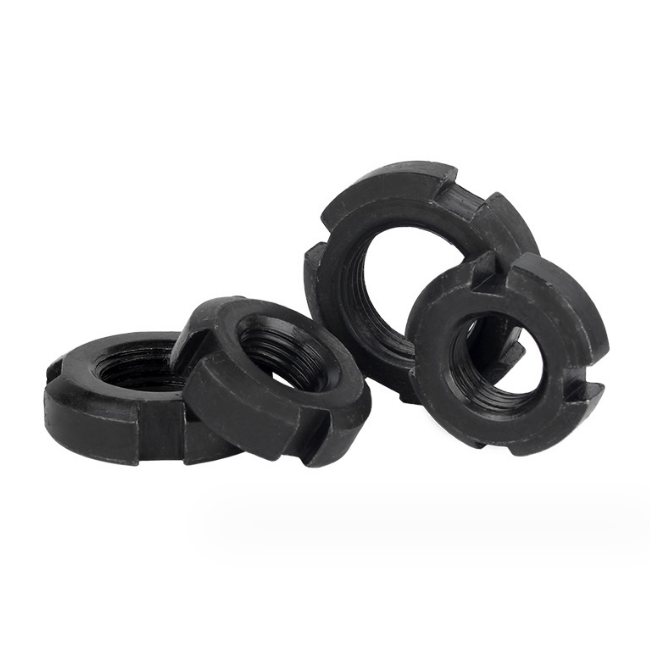

Slotted Round Nut Locking Cap

Email:

liudong@tl-fastener.com

Email:

bolt@tl-fastener.com

Tel:

+86 15132010868

Tel:

+86 18630088852

Product Catalog

Still deciding? Get samples first, Contact US !

View similar products

Description

Key Attributes

Specification

Advantages of Slotted Round Nut Locking Cap:

Multiple specifications available: Covering a wide range of specifications from M101 to M2003.

Reliable slot locking: The parameters of slot width (4.3mm-16.4mm) and slot depth (2.5mm-7.9mm) are compatible with standard bolts.

Stable structure: The thickness range of this Slotted Round Nut Locking Cap is 8mm-30mm, which forms a balanced stress structure with the nuts and rods of corresponding specifications, enhancing the overall stability.

Standardized parameters: The parameters of outer diameter, slot width and thickness for each specification are clear, facilitating quick selection according to the equipment design drawings.

Table 1 (M101 - M602)

规格	外径 dk	槽宽 n	槽深 t	厚度 m
M10*1	22	4.3	2.6	8
M12*1.25	25	4.3	2.6	8
M14*1.5	28	4.3	2.5	8
M16*1.5	30	5.2	3.1	8
M18*1.5	32	5.3	3.1	8
M20*1.5	35	5.3	2.8	8
M22*1.5	38	5.3	3.1	10
M24*1.5	42	5.3	3.1	10
M25*1.5	42	5.3	3.1	10
M27*1.5	45	5.3	3.1	10
M30*1.5	48	5.3	3.1	10
M33*1.5	52	6.3	3.6	10
M35*1.5	52	6.3	3.6	10
M36*1.5	55	6.3	3.6	10
M39*1.5	58	6.3	3.6	10
M40*1.5	58	6.3	3.6	10
M42*1.5	62	6.3	3.6	10
M45*1.5	68	6.3	3.6	10
M48*1.5	72	8.3	4.2	12
M50*1.5	72	8.3	4.2	12
M52*1.5	78	8.3	4.2	12
M55*2	78	8.3	4.2	12
M60*2	90	8.3	4.2	12

Table 2（M642 - M2003）

	外径 dk	槽宽 n	槽深 t	厚度 m
M64*2	95	8.3	4.2	12
M65*2	95	8.3	4.2	12
M68*2	100	10.3	4.7	12
M72*2	105	10.3	4.7	15
M75*2	105	10.3	4.7	15
M80*2	115	10.3	4.7	15
M85*2	120	10.3	4.7	15
M90*2	125	12.4	5.7	18
M95*2	130	12.4	5.7	18
M100*2	135	12.4	5.7	18
M105*2	140	12.4	5.7	18
M110*2	150	14.4	6.7	18
M115*2	155	14.4	6.7	22
M120*2	160	14.4	6.7	22
M125*2	165	14.4	6.7	22
M130*2	170	14.4	6.7	22
M140*2	180	14.4	6.7	26
M150*2	200	16.4	7.9	26
M160*3	210	16.4	7.9	26
M170*3	220	16.4	7.9	26
M180*3	230	16.4	7.9	30
M190*3	240	16.4	7.9	30
M200*3	250	16.4	7.9	30
