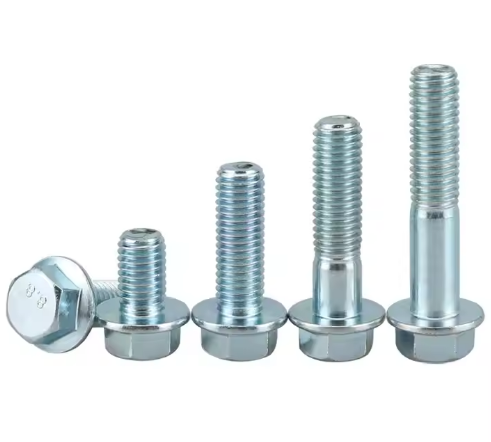

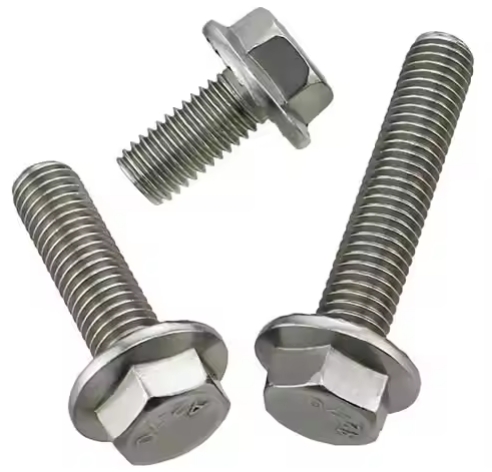

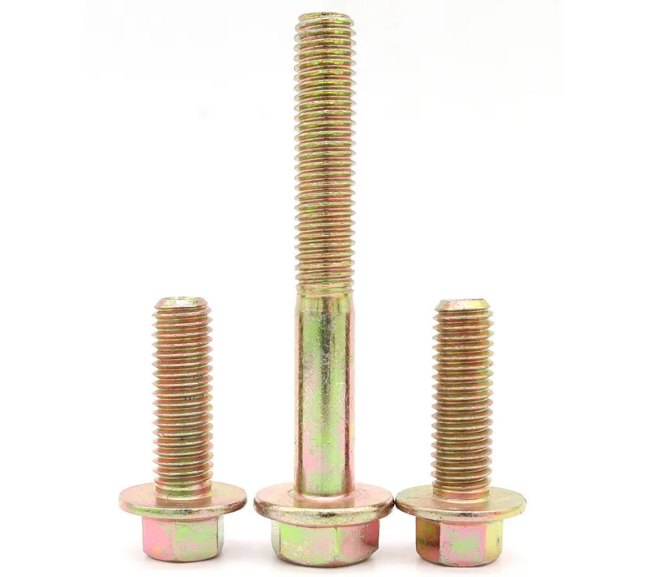

Flange bolts

Material: Carbon Steel, SS304/316
Type: Hex Head, Full/HALF thread
Thread Size: M4-M36
Surface Finish: Plain, Black, Zinc Plated, Yellow Plated, H.D.G
Class: 4.8, 8.8, 10.9, 12.9, A2, A4

Email:

liudong@tl-fastener.com

Email:

Tel:

Tel:

Still deciding? Get samples first, Contact US !

View similar products

Screws

Description

Key Attributes

Material: Carbon Steel, SS304/316
Type: Hex Head, Full/HALF thread
Thread Size: M4-M36
Surface Finish: Plain, Black, Zinc Plated, Yellow Plated, H.D.G
Class: 4.8, 8.8, 10.9, 12.9, A2, A4

Specification

Thread Size $d$	M8	M10	M10	M12	M12	M14	M16
$P$ (Pitch)	1	1.25	1	1.25	1.5	1.5	1.5
$b$ - $L \leq 125$	22	26	26	30	30	34	38
$b$ - $125 < L \leq 200$	28	32	32	36	36	40	44
$b$ - $L > 200$	/	/	/	/	/	/	57
$d_{c}$ (Maximum Value)	17	20.8	20.8	24.7	24.7	28.6	32.8
$d_{s}$ - Maximum Value	8.00	10.00	10.00	12.00	12.00	14.00	16.00
$d_{s}$ - Minimum Value	7.78	9.78	9.78	11.73	11.73	13.73	15.73
$k$ - Maximum Value	8.5	9.7	9.7	12.1	12.1	12.9	15.2
$s$ - Maximum Value	10.00	13.00	13.00	15.00	15.00	18.00	21.00
$s$ - Minimum Value	9.78	12.73	12.73	14.73	14.73	17.73	20.67
$c$ - Minimum Value	1.2	1.5	1.5	1.8	1.8	2.1	2.4
$e$ - Minimum Value	10.95	14.26	14.26	16.50	16.50	19.86	23.15
$L_{0}$	35	40	40	45	45	50	55
Thread Length $b$	-	-	-	-	-	-	-
