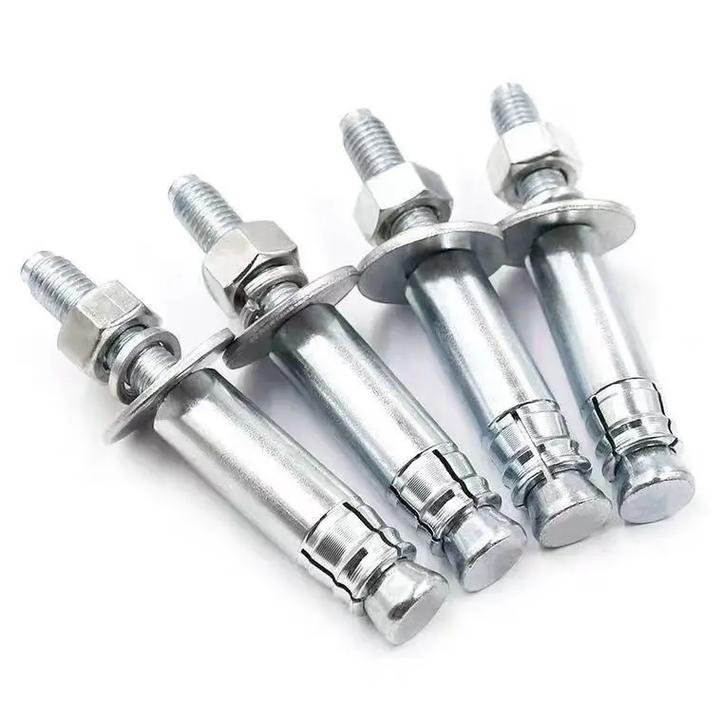

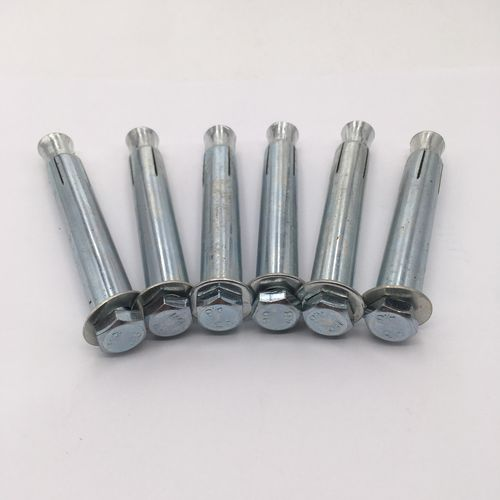

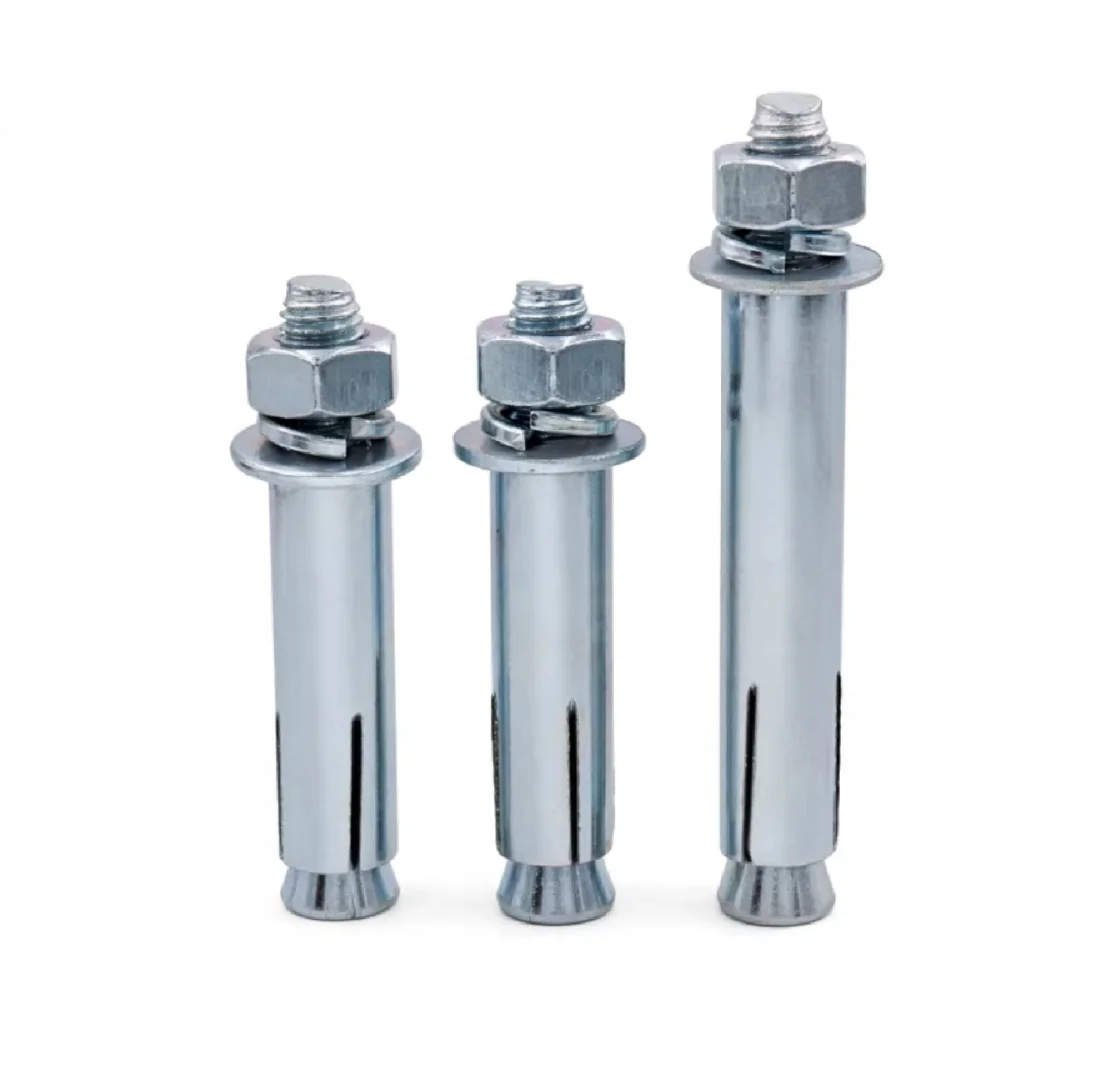

An expansion bolt, also referred to as an expansion anchor or mechanical anchor, is a specialized fastener used to secure objects to solid, non-hollow substrates such as concrete, brick, stone, or masonry. Unlike traditional screws or bolts, expansion bolts rely on a unique mechanical action to create a strong, reliable hold in brittle or rigid materials.
The bolt typically consists of four main components:
Threaded Bolt: A metal rod with threads to engage with a nut.
Expansion Sleeve: A split sleeve (often made of metal or nylon) that expands radially when compressed.
Nut and Washer: Used to tighten the assembly and activate the expansion mechanism.
Tapered End: A cone-shaped tip that forces the sleeve outward during tightening.
How It Works
When installed, the expansion bolt is inserted into a pre-drilled hole matching its diameter. As the nut is tightened, the threaded bolt is pulled upward, driving the tapered end into the expansion sleeve. This forces the sleeve to expand outward, pressing firmly against the walls of the hole. The resulting friction and mechanical interlock distribute loads evenly, enabling the bolt to withstand significant tension, shear, or vibration forces.Applications
Expansion bolts are widely used in:Mounting heavy machinery, shelving, or structural beams.
Securing railings, HVAC systems, or electrical fixtures.
Reinforcing concrete structures in civil engineering projects.
DIY home renovations (e.g., attaching wall-mounted TVs or cabinets).
Advantages
High Load Capacity: Suitable for heavy-duty applications.
Versatility: Compatible with various base materials.
Durability: Resistant to corrosion (if made of stainless steel or galvanized materials).
Ease of Installation: Requires basic tools (drill, wrench).
Installation Steps
Drill a Hole: Create a hole in the base material using a hammer drill and bit sized to match the bolt.
Clean the Hole: Remove debris to ensure proper adhesion.
Insert the Bolt: Push the expansion sleeve and bolt into the hole.
Tighten the Nut: Use a wrench to tighten the nut, activating the expansion mechanism.
