High-Performance Dome Nuts for Rock Bolts T-Thread Design

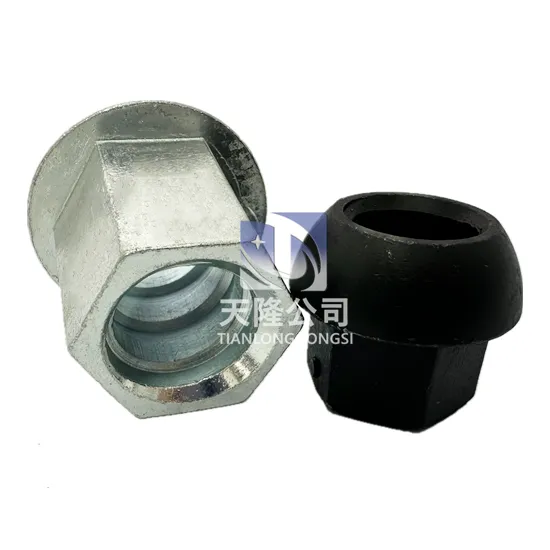

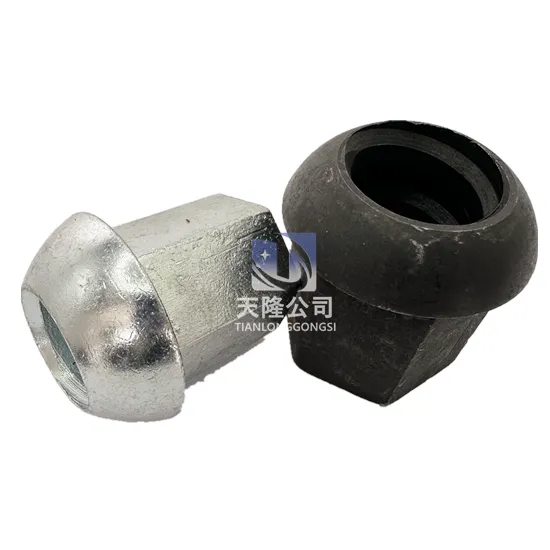

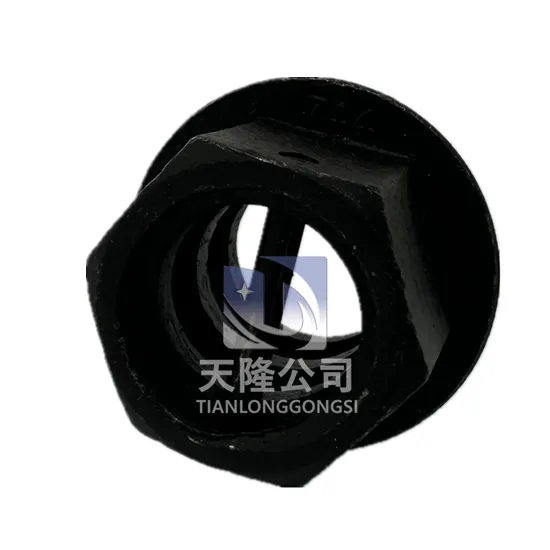

Anchor Nut Dome Nut For Rock Bolt
Dome nuts have a circular flange on one end that creates a large, even clamping surface between the nut and workpiece. They are used with bottom washers to reduce stress on threads caused by misaligned parts.
Still deciding? Get samples first, Contact US !
View similar products
- Description
-
Key Attributes
Anchor Nut Dome Nut For Rock Bolt
Dome nuts have a circular flange on one end that creates a large, even clamping surface between the nut and workpiece. They are used with bottom washers to reduce stress on threads caused by misaligned parts.
Specification
Product Introduction
● Dome nuts' performance will be better than the casting nuts.
● Normally, we do it with carbon steel 1045, black finish and T thread, or based on your drawings.
● Steel dome nuts are assembled with thread bars are widely used in the mining ground support, tunneling ground support, construction, form works, etc.
● Dome nuts will better fit the dome plate.
Anchor Nut Dome Nut For Rock Bolt
Product Parameter (Specification)
Item No.
Size
F
D L #
inch
mm
inch
mm
inch
mm
inch
mm
CLHN016-1
6
3/4"
19
1.38
35
2.01
51
1.57
40
CLHN016-2
7
7/8"
22
1.38
35
2.01
51
1.77
45
CLHN016-3
8
1"
25
1.61
41
2.13
54
1.77
45
CLHN016-4
9
1-1/8"
28
1.77
45
2.28
58
1.97
50
CLHN016-5
10
1-1/4"
32
1.97
50
2.44
62
2.36
60
CLHN016-6
11
1-3/8"
36
2.36
60
2.76
70
2.56
65
CLHN016-7
14
1-3/4"
43
2.95
75
3.94
100
3.15
80
CLHN016-8
18
2-1/4"
57
3.35
85
5.12
130
4.33
110
CLHN016-9
20
2-1/2"
63.5
3.54
90
5.51
140
4.72
120
Products Details
Dome nuts have a circular flange on one end that creates a large, even clamping surface between the nut and workpiece. They are used with bottom washers to reduce stress on threads caused by misaligned parts.
